3-AXIS FILAMENT WINDING MACHINE

Precision Engineering for Advanced Composite Manufacturing

KEY FEATURES

Revolutionizing composite manufacturing processes

3-Axis Configuration

X, Y, and Z-axis control for superior fiber placement precision

Automated Precision

Integrated CNC controller with intuitive MOP for seamless operation

Industry Versatility

Suitable for aerospace, automotive, renewable energy, and more

ADVANCED CAPABILITIES

The pinnacle of innovation in composite manufacturing

Enhanced Flexibility and Control

  • The 3-axis configuration includes X-axis (Spindle Rotation), Y-axis (Carriage Longitudinal Movement), and Z-axis (Cross-feed Carriage)
  • Precise control over fiber placement angles and positions
  • Dynamically adjust fiber orientation throughout the winding process
  • Optimize mechanical properties and structural integrity of composites
  • Enable complex geometries with consistent quality

Comprehensive Automation

  • Integrated CNC Controller with intuitive MOP interface
  • Real-time monitoring of all winding parameters
  • Automate complex winding patterns and geometries with ease
  • Enhanced production efficiency and consistency
  • Reduced operator intervention and training requirements

Versatility Across Industries

  • Ideal for aerospace, automotive, renewable energy, and industrial applications
  • Produces high-strength, lightweight components critical to modern industries
  • Manufactures rocket motor casings, aircraft fuselages, and structural components
  • Creates wind turbine blades with superior performance characteristics
  • Produces pressure vessels with optimal strength-to-weight ratios

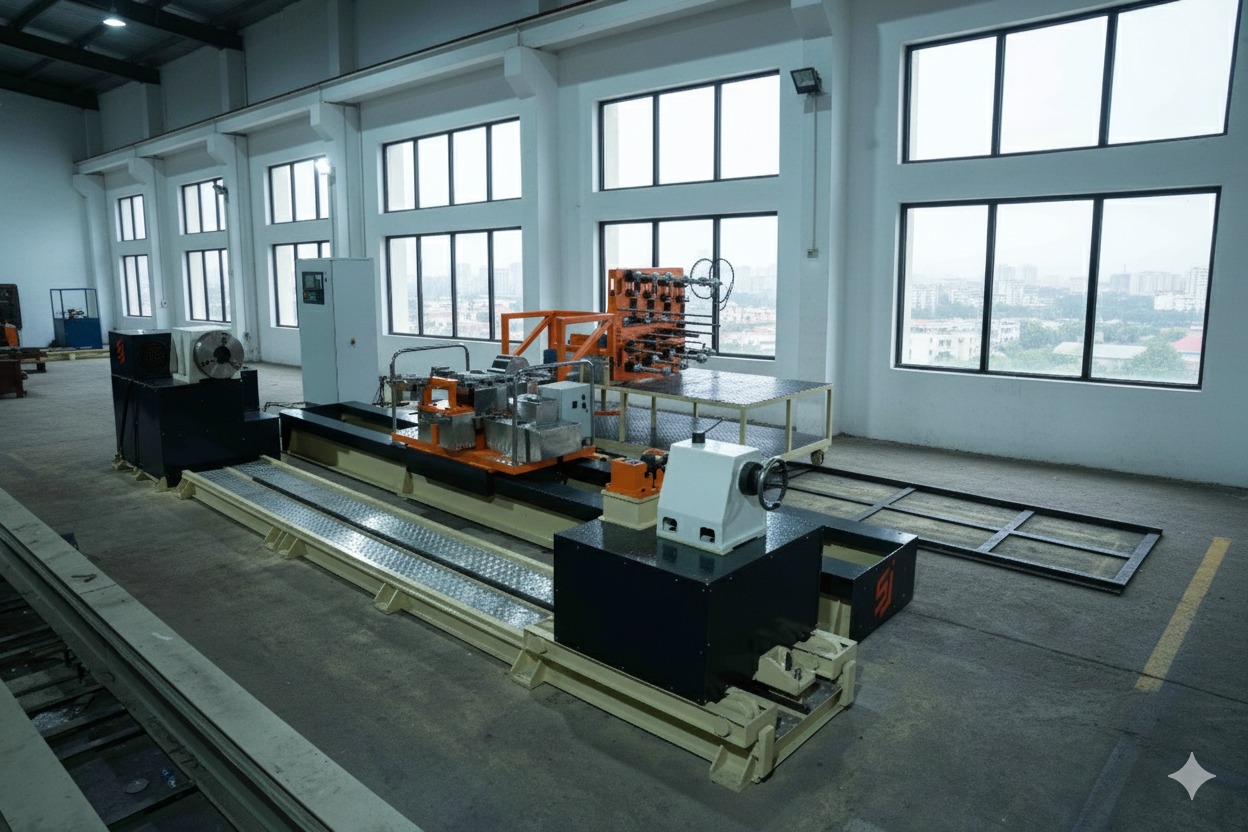

3-Axis Filament Winding Machine

ADVANCED COMPOSITE MANUFACTURING SOLUTION

Our 3-axis filament winding machine represents the pinnacle of innovation, offering unmatched precision and versatility in composite manufacturing processes. Engineered for demanding industrial applications, it delivers exceptional performance for a wide range of composite structures.

  • Axis Configuration: 3-Axis (X, Y & Z)
  • Max Mandrel Length: as per customer Requirement
  • Max Mandrel Diameter: as per customer Requirement
  • Spindle Speed: 0-120 RPM
  • Carriage Speed: 40 Mtrs/Min
  • Control System: Advanced CNC with MOP
  • Fiber Types: Carbon, Glass, Aramid, Hybrid
  • Resin System: Compatible with all including epoxy, polyester

INDUSTRY APPLICATIONS

Versatile solutions for diverse industries

Aerospace

Rocket motor casings, aircraft fuselages, structural components

Automotive

Drive shafts, suspension components, chassis parts

Industrial

Pressure vessels, storage tanks, pipes, rollers

Renewable Energy

Wind turbine blades, poles, nacelle components

READY TO TRANSFORM YOUR COMPOSITE MANUFACTURING?

Discover how our 3-axis filament winding machine can optimize your production process and deliver superior composite components.
